Subtractive Processes

Grinding, sanding and polishing

Grinding, sanding and polishing cover a wide range of processes used to finish metal, wood, plastic, ceramic and glass products.The size andtype of abrasive particle, combined with the method of finishing, will determine the range of surface effects that can be achieved.

The surface finish ranges from coarse to mirror and can be a uniform texture or patterned depending on the technique used and type and size of abrasive particles. Video-How the Alessi Bird Kettle is made?

sanding-with-the-dremel-rotary-tool
Rotary Sanding
1-Vibratory-deburring
Vibratory Finishing
FOSSTGLDUNEGLPIC_500x500
Honed Glass Tile
Lappingcomparison
High Precision Lapping

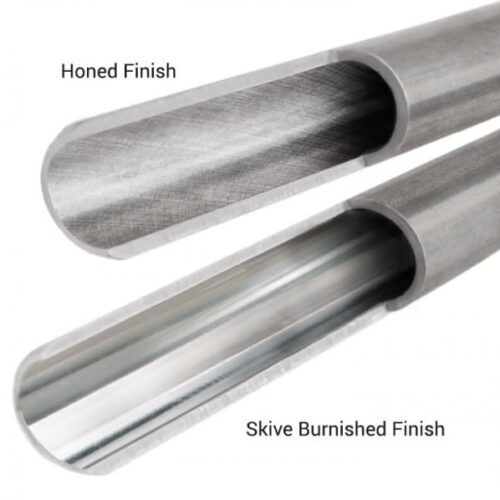

Honing_vs_Skiving_Finish-600x598

Electropolishing

This is the reverse of electroplating; material is removed from the surface of the workpiece by electrochemical action to leave metal parts with a bright and clean finish.
Electropolished stainless steel has similar visual characteristics to chrome- plated metals. Electropolishing is a simpler process than electroplating chrome and uses less water and chemicals, so is more cost effective. As a result of the increase in use of electropolishing, it is steadily becoming less expensive.
electropolishing-bw
stainlesss-steel-seamless-electro-polish-pipe-500x500
maxresdefault-26

Abrasive Blasting

This is a generic term used to describe the process of surface removal by fine particles of sand, metal, plastic or other abrasive materials, which are blown at high pressure against the surface of the workpiece and produce a finely textured finish.

It includes sand blasting, dry etching, plastic media blasting (PMB), shot blasting, and bead blasting. All of these have 2
main functions. Firstly, they are used to prepare a surface for secondary operations by removing contaminants
and applying a fine texture that will aid surface addition processes. Secondly, they can be used to apply a decorative texture to the surface of a part such as affecting the transparency of glass applying
a pattern.

1408i_Page_22_Image_0001_600
Blasting-6061-Aluminum-682x400
From left to right, the media used are as follows:
#5 Glass Bead – a bright, peened finish
80Mesh Aluminum Oxide Grit – lightly etched,Matte finish
#13 Fine Glass Bead – very smooth, matte surface finish
sandblasted-glass-500x500
Decorative Sandblasting Glass

Photo Etching

Photo etching also referred to as acid etching and wet etching is the process of surface removal by chemical dissolution. This process is precise andlow cost.
This is surface removal by chemical cutting. It has a similar appearance to abrasive blasting. The surface of the metal is masked with a resist film and unprotected areas are chemically dissolved in a uniform manner.
1.2.0_fused_metal_eco_etch_8413_11042015
1.1.0_stainless_steel_eco_etch_8392_11042015
chemical+milling+example-640w

CNC Engraving

The CNC engraving process is carried out on a milling or routing machine. These machines will operate on a minimum of 3 axes; x,y and z. Machines operating on 3 axes are suitable for engraving flatworl<;5-axis machines are able to produce more complex engravings and accommodate 3D surfaces, but are more expensive to run,
A precise method for engraving 2D and 3D surfaces, CNC engraving is a high quality and repeatable process. Filling engravings with different colours and the use of clear materials are effective ways to enhance design details.
il_1588xN.2415845370_nics
grabado-metacrilato1
with-cnc-theres-no-limit-to-what-you-can-cut-adobe-stock-210106
